USD ANIMAL REPELLER WITH WIRELESS REMOTE AND LED LIGHT

2
Repeller Settings


PRODUCT DESCRIPTION:    Small cigar sized box that uses sound to repel nuisance animals. These units emit an ultra sound (frequencies humans cannot hear) and audible sounds. The ultra sound will make them uncomfortable and want to leave the area and will be heard all the time when the unit is on. The audible sounds can be turned off or on as needed; they work by "scaring" targeted animals.

This unit has many features making it well suited to repel a range of nuisance animals from the yard or home. It includes a wireless remote so you can turn it to standby mode when you want to access the protected zone and do not want to hear the unit go off. It can be used inside and outside the home and has so many settings you can fit it to work for your specific pest problem.

Ultra sound travels in a path much like the light coming from a flashlight; its approximately 45 degrees wide. Think of the path like a slice of "pizza"; the tip of the slice would be where the sound starts and by the time it reaches the "crust", its about 100 feet wide. Now in open areas with no vegetation, the width is wider. But if there is a lot of undergrowth, shrubs, bushes, etc. the sound waves will get broken up, distorted and effectively reduced so plan on geographic issues if the area is a thickly vegetated yard or cluttered attic.

SCROLL DOWN PAGE FOR DETAILED DIRECTIONS AND SPECIFIC SETTINGS FOR YOUR TARGET ANIMAL OR CLICK TARGET PEST:     Armadillo   Badger  Bats (in attic)   Bats (outside around home)    Bobcat    Coyote    Deer    Dogs    Feral Cats    Flying Squirrels (in attic)    Flying Squirrels (around roof outside)    Fox    Javelina    Marmot    Mice (in crawl space or attic)    Mice (in living area)    Porcupine    Rabbit    Raccoon    Rats (in crawl space or attic)    Rats (in living spaces)    Rock Chucks    Skunk    Squirrels (inside attic)    Squirrels (outside in yard or trees)    Vultures    Wild Pigs      Wood Chuck

WHATS INCLUDED:  The unit comes with the sound repeller, a wireless remote, two screws for mounting it on a tree, fence or wall and an AC power converter with 6 foot long cord.

$50.00 (747811)(2 Units – $45.00 ea; 3+ Units $40.00 ea)(FREE STANDARD SHIPPING)
Order online and save 5%

INTERNATIONAL CUSTOMERS CLICK HERE TO ORDER

HOW TO POWER THE UNIT:   This unit can be powered by the included AC power converter or 4 "C" batteries. If you need to power it with batteries, we suggest you use the "motion detector" setting (see below). This will allow the batteries to last 3-6 months. Running the unit set to "constant" means it will be always on so the batteries will only last a few days. If you need to set the unit to "constant" for your nuisance animal (see suggested settings below), plan on using the included power supply. Using this will cost very little per month; less than $.50 of electricity.



Wireless Remote with buttons labeled

Wireless Remote with buttons labeled

WIRELESS REMOTE FEATURES:  The wireless remote has 4 buttons. The top left (red) button with the picture of the person running can be used to scare large animals or people. It will turn on the ultra sound and audible sounds as well as flash the light when activated. The button to the top right is the standby control. Use this to turn the unit "off" when you'd like to go outside and not have the unit activate. The button to the bottom left hand side with the alarm will activate the ultra sound only. The button to the right side, bottom with the lightning bolt will activate the LED front panel light used to scare to nocturnal animals like deer, hogs, cats or other canines.

TARGET ANIMALS:    Armadillo, Bats, Bobcats, Cats, Coyote, Dogs, Deer, Flying Squirrels, Fox, Javelina, Marmots, Mice, Pigs, Rabbits, Rats, Raccoon, Rock Chucks, Skunk, Squirrels,and Wild Hogs.

HOW ULTRA SOUND WORKS:   Its important to understand Ultra Sound does not penetrate anything solid. This means it cannot go through walls, plants, around buildings, etc. It is effective only in the area directly in front of where a unit is placed and depending on the placement and surrounding area, can protect up to 5000 sq/ft per machine.

Do not use these to protect any kind of food in the yard. Fruits and vegetables – especially those grown in the garden – will be too attractive for most any animal to ignore and they will usually forego the discomfort of sound to get a good meal.

** SPECIAL NOTE ABOUT PETS **   The use of Ultra Sound cannot injure animals including pets. As explained above, the sounds emitted will make certain animals uncomfortable and want to move elsewhere. But the range of sound is variable and specific. That means if you are trying to repel rats or bats and dial in that setting, dogs and cats won't mind the sound even though they can hear it. If used in the yard, use the wireless remote to "disarm" the device when pets go out but if you forget, your pet will most likely learn to accept the sound. Remember, this is there home and the sound arrived at a later date so it will not be perceived as a threat. This is exactly opposite for wild animals coming to your yard foraging.

RANGE OF SOUND:  This will vary based on the settings. For the ultra sound waves, the impact needs "line of sight" since ultrasound does not penetrate. So for open areas, fields, etc. it will be heard up to 75 feet away and effectively protect up to 5,000 sq/ft. The audible sound is quite loud and can be heard up to 300 feet away.

MOTION DETECTOR RANGE:  This setting is adjustable with the highest setting (30) enabling it to pick up movement 50 feet away (animal size will impact performance as explained below so plan accordingly based on your target animal).

Repeller Settings

Repeller Settings

HOW TO CONFIGURE THE SETTINGS:  This unit has many options and settings. See below for the recommended setting for your target animal. The following is a brief explanation of how each setting will control the unit.

OPERATING TIME SLIDER:   Use this to configure the unit to be active any time of the day, during the night only or during daylight hours only.

ULTRASONIC SETTINGS:  By default, the unit will always a band of ultra sound when activated. Use this switch to control determine if the unit should only go off based on motion or if you want to be always on (this would be the "Constant" position). The "Cont. Sweep" means it will use both ultra sound and audible sounds when activated.

MOTION SENSOR SENSITIVITY:  Use this adjustment to control how sensitive the unit will be at detecting motion. It can be dialed down so it will only go off if the target animal is inside of 5 feet. The "maximum" or most sensitive setting will enable it to be triggered by animals up to 50 feet away (this will depend on the size of the animal and how high the unit is off the ground. Small units won't be "seen" as far away as large animals and if the device is only a few inches off the ground, it won't be able to detect motion at its maximum range).

SONIC VOLUME:  Use this control if you would like to add sound when repelling animals. In most cases outside, this will help. When using in the home, you many want to keep the sound turned all the way down which means you won't hear it at all. For repelling most animals in the home, the sound will not be recommended though using it can be helpful if you wanting to "hear" when animals or some kind of movement is detected by the machine.

FREQUENCY SETTING:  This control has the yellow top on the button and will allow you to turn it 180 degrees from left to right. The best position for your target animal will be listed below.

DC INPUT CONNECTION:  Plug in your AC power supply to this port if powering the unit with the included power supply.

BATTERY COMPARTMENT:  Insert 4 "C" cell batteries to this compartment taking care to point them in the right direction. And remember that once the unit has batteries, it will automatically turn on and be active unless you use the wireless remote to place it in standby mode!

DEVICE SIZE:   6.5" wide by 5.5" tall by 3.5 inches deep.

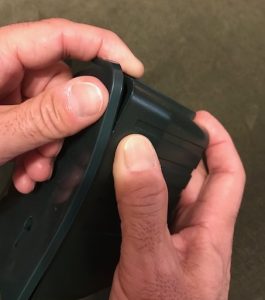

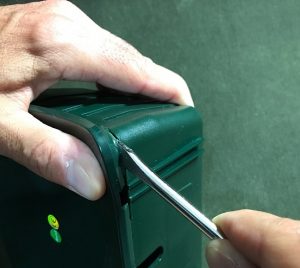

Use a flat head screwdriver to gently pull away the cover from the housing so it can slide over it smoothly.

Use a flat head screwdriver to gently pull away the cover from the housing so it can slide over it smoothly.

REPLACING BACK COVER:  This unit is considered "weatherproof". Its not water proof so you must keep it above water when placed in the yard. The back cover fits like a tupperware cover and effectively seal the back where all the control buttons and electronic board is housed. This cover is meant to fit tight so when replacing it after making your desired settings, take care to properly affix it slowing by starting on the top two corners first and the sliding the sides over the housing. When  you get to the bottom, it may be "tight" so do not force the lid over the housing but instead, use a flat head screwdriver to gently bend the lip out and over the housing. This may or may not needed initially depending on the weather, temperatures, etc. Once the cover has been replaced a couple of times, it will go off and on easily.

RECOMMENDED SETTINGS:  The following are recommended settings and can be altered as needed.

Armadillo:   Set Operating Time to "night", Ultrasonic to "Motion Sensor",  the Motion Sensor Sensitivity to "30" and the Sonic Volume to "60-80". Frequency (yellow knob) almost all the way to the left. Plan on powering the unit with batteries.

Badger:   Set Operating Time to "night" and the Ultrasonic to "motion sensor". The Motion Sensor Sensitivity should be on "30" and the Sonic Volume at "80". Frequency (yellow knob) in the middle. In general, using batteries and motion detection only will scare them away and keep them away. But if they have been super active around your property, set the on/off to "constant" for the first week and plan on powering the unit using the included AC converter. This will cause them to track elsewhere and eventually forget your land.

Bats (inside attic):   Set Operating Time to "24 Hr", Ultrasonic to "constant",  the Motion Sensor Sensitivity is "N/A" since it will be always on and the Sonic Sound volume at "0-20". Frequency (yellow knob) should be almost all the way to the right.  Plan on powering the unit using the included AC converter.

Bats (outside):   Set Operating Time to "night", on/off to "constant",  Ultrasonic to "constant" and the Motion Sensor Sensitivity is "N/A" since it will be always on. The Sonic Volume should be set at "0". Frequency (yellow knob) should be almost all the way to the right.  Plan on powering the unit using the included AC converter as the ultra sound and LED going off all the time is a strong deterrent to these animals.

Bobcat:   Set Operating Time to "night" and the Ultrasonic to "motion sensor". The Motion Sensor Sensitivity should be on "30" and the Sonic Volume at "80". Frequency (yellow knob) in the middle. In general, using batteries and motion detection only will scare them away but if they have been super active around your property, set the on/off to "constant" for the first week and plan on powering the unit using the included AC converter. This will cause them to track elsewhere and eventually forget your land.

Coyote:   Set Operating Time to "night" and Ultrasonic to "motion sensor". The Motion Sensor Sensitivity should be on "30" and the Sonic Volume at "80". Set the Frequency (yellow knob) in the middle. In general, using batteries and motion detection only will keep them away.

Deer:   Set Operating Time to "night", Ultrasonic to "Motion Sensor",  the Motion Sensor Sensitivity to "30" and the Sonic Volume to "60-80". Frequency (yellow knob) almost all the way to the left. Plan on powering the unit using batteries.

Dogs:   Set Operating Time to any of the 3 options depending on when your target dogs are most active. If set to Motion Detector, set the Motion Sensor Sensitivity to "30" and the Sonic Sound to "80".  If set to "Constant", turn the "Sonic Volume" to the far left which will eliminate audible sound. The Frequency (yellow knob) should be set in the middle. In general, using batteries and motion detection will keep them away but you may have reason to keep the unit on all the time.

Feral Cats:   You can repel cats from the yard by keeping the unit always on using the included AC power supply or by powering it with batteries set to motion sensor. When using the included AC power supply, set the Operating Time to "24 HR" and Ultrasonic to "constant".   The Motion Sensor Sensitivity is "N/A" since it will be always on and the Sonic Volume should be turned all the down (to the left). Set the Frequency (yellow knob) to the middle.

When relying on the motion sensor powered by batteries, set the Operating Time to "24 HR" and the Ultrasonic to "motion sensor". The Motion Sensor Sensitivity should be on "30" and the Sonic Volume at "0". The frequency (yellow knob) should be right in the middle. Just remember the range of the motion sensor is 30 feet so you should plan on having enough units in place to properly protect the yard.

Flying Squirrels (inside attic):   Set Operating Time to "24 Hr", Ultrasonic to "constant",  the Motion Sensor Sensitivity is "N/A" since it will be always on and the Sonic Sound volume at "0-20" if this is not a problem for people in living areas. Frequency (yellow knob) should be almost all the way to the right.  Plan on powering the unit using the included AC converter as the LED light going off is a strong deterrent to these animals.

Flying Squirrels (outside home):   Set Operating Time to "Night", Ultrasonic to "constant",  the Motion Sensor Sensitivity is "N/A" since it will be always on and the Sonic Sound volume at "0". The Frequency (yellow knob) should be almost all the way to the right.  Plan on powering the unit using the included AC converter as the LED light going off is a strong deterrent to these animals.

Fox:   Set Operating Time to "night" and Ultrasonic to "motion sensor". The Motion Sensor Sensitivity should be on "30" and the Sonic Volume at "80". Set the Frequency (yellow knob) in the middle. In general, using batteries and motion detection only will keep them away.

Javelina:   Set Operating Time to "night", Ultrasonic to "constant",  the Motion Sensor Sensitivity is "N/A" since it will be always on and the Sonic Volume set to "80-100". Frequency (yellow knob) almost all the way to the left. Plan on powering the unit using the included AC converter for at least two weeks and then running it on batteries using the "Motion Sensor" will generally work thereafter.

Marmots:   Set Operating Time to any of the 3 options depending on when your target marmots are most active. If set to Motion Detector, set the Motion Sensor Sensitivity to "30" and the Sonic Sound to "80".  If set to "Constant", turn the "Sonic Volume" to the far left which will eliminate audible sound. The Frequency (yellow knob) should be set in the middle. In general, using batteries and motion detection will keep them away and out of the yard but you may have reason to keep the unit on all the time.

Mice (inside attic or crawl space):   Set Operating Time to "24 Hr", Ultrasonic to "constant",  the Motion Sensor Sensitivity is "N/A" since it will be always on and the Sonic Sound volume at "0-20" if this is not a problem for people in living areas. Frequency (yellow knob) should be mostly to the right.  Plan on powering the unit using the included AC converter as the LED light going off  and the constant ultra sound pumped out is a strong deterrent to these animals.

Mice (in living spaces):   Set Operating Time to your needs. In general, setting up a single machine per room to "24 HR" and the Ultrasonic to "constant",  the Motion Sensor Sensitivity is "N/A" since it will be always on and the Sonic Sound volume at "0" since the ultra sound alone will be enough to drive them out of living spaces. Use the include wireless key to turn the unit on/off as needed when not in the rooms where machines are deployed. Frequency (yellow knob) should be mostly to the right.  Plan on powering the unit using the included AC converter as the LED light going off  and the constant ultra sound pumped out is a strong deterrent to these animals.

Porcupine:   Set Operating Time to "night", Ultrasonic to "Motion Sensor",  the Motion Sensor Sensitivity to "30" and the Sonic Volume to "60-80" if not higher. Frequency (yellow knob) almost all the way to the left. Plan on powering the unit using batteries.

Rabbit:   Set Operating Time to "night", Ultrasonic to "Motion Sensor",  the Motion Sensor Sensitivity to "30" and the Sonic Volume to "60-80". Frequency (yellow knob) almost all the way to the left. Plan on powering the unit with batteries.

Raccoon:   Set Operating Time to "night", Ultrasonic to "Motion Sensor",  the Motion Sensor Sensitivity to "30" and the Sonic Volume to "60-80". Frequency (yellow knob) almost all the way to the left. Plan on powering the unit using batteries.

Rats (inside attic or crawl space):   Set Operating Time to "24 Hr", Ultrasonic to "constant",  the Motion Sensor Sensitivity is "N/A" since it will be always on and the Sonic Sound volume at "0-20" if this is not a problem for people in living areas. Frequency (yellow knob) should be mostly to the right.  Plan on powering the unit using the included AC converter as the LED light going off  and the constant ultra sound pumped out is a strong deterrent to these animals.

Rats (in living spaces):   Set Operating Time to your needs. In general, setting up a single machine per room to "24 HR" and the Ultrasonic to "constant",  the Motion Sensor Sensitivity is "N/A" since it will be always on and the Sonic Sound volume at "0" since the ultra sound alone will be enough to drive them out of living spaces. Use the included wireless key to turn the unit off/on as needed when not in the rooms where machines are deployed. Frequency (yellow knob) should be mostly to the right.  Plan on powering the unit using the included AC converter as the LED light going off  and the constant ultra sound pumped out is a strong deterrent to these animals.

Rock Chucks:   Set Operating Time to any of the 3 options depending on when your target rock chucks are most active. If set to Motion Detector, set the Motion Sensor Sensitivity to "30" and the Sonic Sound to "80".  If set to "Constant", turn the "Sonic Volume" to the far left which will eliminate audible sound. The Frequency (yellow knob) should be set in the middle. In general, using batteries and motion detection will keep them away and out of the yard but you may have reason to keep the unit on all the time.

Skunk:   Set Operating Time to any of the 3 options depending on when your target skunks are most active. If set to Motion Detector, set the Motion Sensor Sensitivity to "30" and the Sonic Sound to "80".  If set to "Constant", turn the "Sonic Volume" to the far left which will eliminate audible sound. The Frequency (yellow knob) should be set in the middle. In general, using batteries and motion detection will keep them away and out of the yard but you may have reason to keep the unit on all the time.

Squirrels (inside attic):   Set Operating Time to "24 Hr", Ultrasonic to "constant",  the Motion Sensor Sensitivity is "N/A" since it will be always on and the Sonic Sound volume at "0-20" if this is not a problem for people in living areas. Frequency (yellow knob) should be in the middle.  Plan on powering the unit using the included AC converter as the LED light going off  and the constant ultra sound pumped out is a strong deterrent to these animals.

Squirrels (outside in the yard):   Set Operating Time to "day", on/off to "constant",  Ultrasonic to "constant" and the Motion Sensor Sensitivity is "N/A" since it will be always on. The Sonic Volume should be set at "0". Frequency (yellow knob) should be in the middle.  Plan on powering the unit using the included AC converter as the ultra sound and LED going off all the time is a strong deterrent to these animals.

Vultures:   Set Operating Time to "24 HR", Ultrasonic to "Motion Sensor",  the Motion Sensor Sensitivity to "30" and the Sonic Volume to "60-80". Frequency (yellow knob) in the middle. Plan on powering the unit using batteries.

Wild Pigs:   Set Operating Time to "night", Ultrasonic to "constant",  the Motion Sensor Sensitivity is "N/A" since it will be always on and the Sonic Volume set to "80-100". Frequency (yellow knob) almost all the way to the left. Plan on powering the unit using the included AC converter for at least two weeks. There after, once the pigs have learned the sound will be constantly active, they will generally reroute their foraging in other directions and avoid your protected land. At this time you can turn the Operating Time to "night", Ultrasonic to "Motion Sensor",  the Motion Sensor Sensitivity to "30" and the Sonic Volume set to "80-100". Frequency (yellow knob) almost all the way to the left.

Wood Chuck:   Set Operating Time to any of the 3 options depending on when your chucks are most active. If set to Motion Detector, set the Motion Sensor Sensitivity to "30" and the Sonic Sound to "80".  If set to "Constant", turn the "Sonic Volume" to the far left which will eliminate audible sound. Remember, using the included power supply with the power always on will enable the unit to cover the most area as possible. But if you don't have a nearby outlet for power, use batteries and understand the motion sensor will only trigger when target animals come to within 30 feet of the unit. The Frequency (yellow knob) should be set in the middle regardless of the power option and in general, using batteries and motion detection will keep them away and out of the yard for good.
